MightyRaze
Administrator
Administrator


Join date : 2016-09-06
Posts : 5895

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeSat Jun 22, 2019 10:19 pm

Fixed my front spindle today.  I hope to have a video later of my Haspin out-brief! Had a tiny surprise.  KAL the Extended Journey. - Page 3 2664539216

KAL the Extended Journey. - Page 3 Img_2047
Back to top Go down
http://mightyraze.com
AllisKidD21
Moderator
Moderator
AllisKidD21

Age : 20
Join date : 2016-07-10
Posts : 4708
Forum Rep : 213
Location : Ontario Canada

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeSat Jun 22, 2019 10:25 pm

I see you had to break out the blue wrench to bend 'er back!

She should be good to go once you add a gusset for each spindle, got an idea of how you're gonna do it yet? Short piece of 3/16" flatstock or something would work pretty good.


_______________________________________________
"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill
       - MTD Off-Road Build
       - Toro Rat Rod Tractor Build
       - Ford LT 110 Off-Road Build
       - Craftsman GT 6000 Off-Road Build
       - John Deere 110 Basic Off-Road Build
       - Allis B-110, 710 & 716 - Wheel Horse 655 - Case 444 - Bolens Versamatic - Cub Cadet 106  - Jacobsen YT 14 -
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 44
Join date : 2016-09-06
Posts : 5895
Forum Rep : 413
Location : Shawnee, OK

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeSun Jun 23, 2019 12:37 am

I have some thick flatstock piece I can cut some out from.  Maybe 1/4 inch?

_______________________________________________
Patriot [2019 Build Off]
Kal-El [2018 3rd Place]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Li'l Red 2.0

KAL the Extended Journey. - Page 3 Admins10
Back to top Go down
http://mightyraze.com
MightyRaze
Administrator
Administrator
MightyRaze

Age : 44
Join date : 2016-09-06
Posts : 5895
Forum Rep : 413
Location : Shawnee, OK

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeSun Jun 23, 2019 12:54 am


_______________________________________________
Patriot [2019 Build Off]
Kal-El [2018 3rd Place]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Li'l Red 2.0

KAL the Extended Journey. - Page 3 Admins10
Back to top Go down
http://mightyraze.com
RichieRichOverdrive
Seasoned Veteran
Seasoned Veteran
RichieRichOverdrive

Age : 17
Join date : 2016-10-29
Posts : 2538
Forum Rep : 86
Location : Lewisburg, KY

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeSun Jun 23, 2019 1:43 am

With frame twist you gotta think laterally, or diagonally- what will oppose the forces my frame is facing? I'm not sure just a few little pieces of flatstock will fix your issue. I think a horizontal X brace would serve you best, that way the corners of the frame can't pull away or push towards each other. Just my $.02 though.

Hey we can't be forgetting the mr.moodified classic, welding a nut in on the inside of the spindle! lol!
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 44
Join date : 2016-09-06
Posts : 5895
Forum Rep : 413
Location : Shawnee, OK

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeSun Jun 23, 2019 10:03 am

Yeah I know, the frame really doesn't twist per say.  It kind of tries to fold front to back a little in the middle.  I think the foot braces are like the way they are to hold the sidewalls in place, but they are so old they are bending.  Yeah, I was planning on an X brace in there some time, but taking out the little things first.  Hey, if the nut works...  Smile

_______________________________________________
Patriot [2019 Build Off]
Kal-El [2018 3rd Place]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Li'l Red 2.0

KAL the Extended Journey. - Page 3 Admins10
Back to top Go down
http://mightyraze.com
prancstaman
Expert
Expert
prancstaman

Join date : 2015-02-02
Posts : 1210
Forum Rep : 74
Location : Cleveland,Ohio

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeSun Jun 23, 2019 1:57 pm

The frame twist, maybe run flat stock down the frame rails on the outside. From the front shocks area to the trans mounts. Then some crossing over on top of the frame like the foot board crossovers are, since it looks pretty crowded underneath.

The 3 points of contact the frame original had, from ground to main frame, changed to 4 points of contact. Which is, 2 rear tires and front axle pivot (3 point, originally) to all tires on the ground (frame with front suspension with shocks up front, 4 point).

Hi Doggies.
Back to top Go down
RichieRichOverdrive
Seasoned Veteran
Seasoned Veteran
RichieRichOverdrive

Age : 17
Join date : 2016-10-29
Posts : 2538
Forum Rep : 86
Location : Lewisburg, KY

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeSun Jun 23, 2019 2:05 pm

Yeah i think the way you describe it flatstock will work. Angle iron would be even better.
Back to top Go down
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2469
Forum Rep : 83
Location : New Jersey USA

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeSun Jun 23, 2019 6:40 pm

Yeah on the baja sears I welded nuts in. I've used some pieces of threaded rod before too. Anything to fill the spot in the inside bend of the spindle. Can't remember if the simplicity adventure edition has them or not. I'd have to look. Don't think I did anything on that one.
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 44
Join date : 2016-09-06
Posts : 5895
Forum Rep : 413
Location : Shawnee, OK

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeSun Jun 23, 2019 8:17 pm

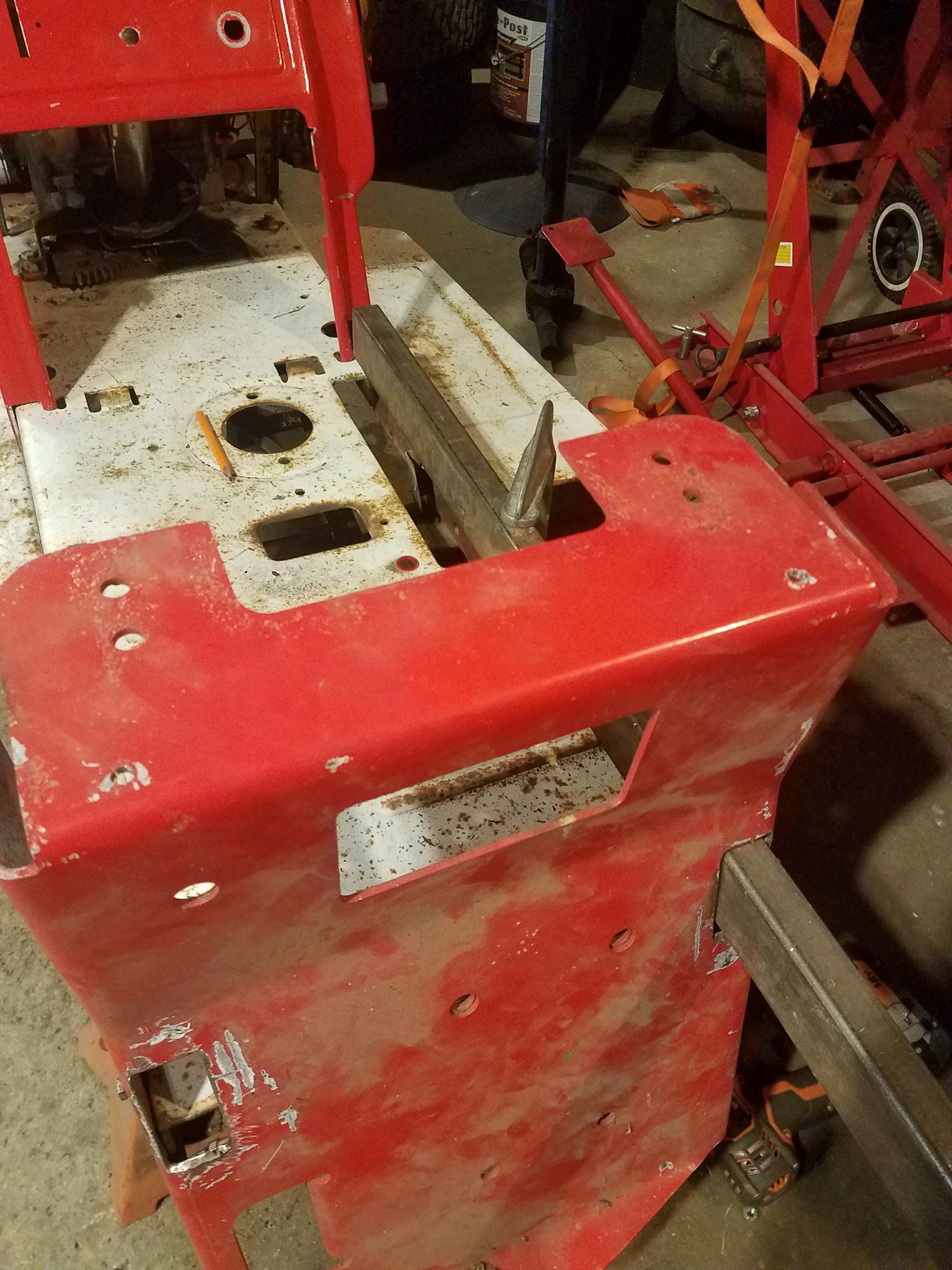

He never share it here... but I like what @Doug did with his Murray of similar vintage to help with the folding.
He ran tube inside the tunnel topside.  Lots of room and plenty of space.  I could use angle or tube and would not need to come out the back like Doug, but he used it as a bumper mount.

KAL the Extended Journey. - Page 3 31230510

These are all plans for the future..  After this year's build-off.  I have already nailed out some ideas for Li'l Red 2.0.

_______________________________________________
Patriot [2019 Build Off]
Kal-El [2018 3rd Place]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Li'l Red 2.0

KAL the Extended Journey. - Page 3 Admins10
Back to top Go down
http://mightyraze.com
MightyRaze
Administrator
Administrator
MightyRaze

Age : 44
Join date : 2016-09-06
Posts : 5895
Forum Rep : 413
Location : Shawnee, OK

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeTue Jun 25, 2019 1:09 pm

New better quality ball bearings for front wheels are on order.

_______________________________________________
Patriot [2019 Build Off]
Kal-El [2018 3rd Place]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Li'l Red 2.0

KAL the Extended Journey. - Page 3 Admins10
Back to top Go down
http://mightyraze.com
Murraymountain
Master
Master
Murraymountain

Join date : 2019-02-04
Posts : 932
Forum Rep : 40
Location : North Carolina

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeTue Jun 25, 2019 8:58 pm

When you say, "Li'l Red 2.0", you mean rebuilding Red, not a new Red, right?
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 44
Join date : 2016-09-06
Posts : 5895
Forum Rep : 413
Location : Shawnee, OK

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeTue Jun 25, 2019 10:17 pm

A new Li'l Red.  Just a code name for now.  I would like to score a craftsman LT for it. Red will donate a few parts for it, but will not be disabled.

_______________________________________________
Patriot [2019 Build Off]
Kal-El [2018 3rd Place]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Li'l Red 2.0

KAL the Extended Journey. - Page 3 Admins10
Back to top Go down
http://mightyraze.com
MightyRaze
Administrator
Administrator
MightyRaze

Age : 44
Join date : 2016-09-06
Posts : 5895
Forum Rep : 413
Location : Shawnee, OK

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeWed Jul 03, 2019 11:08 am

I have my new bearings for Kal.  I have not installed them yet.  I have been doing some contemplating and I think it would be best to "REMOVE" the rear rack from Kal.  I found it to be more dangerous than helpful.  Should Kal break, it would more than likely be towed back to camp where I have all my tools.  I probably won't be doing the "fearless" style romping down a trail and back.  It will more than likely be Haspin style.  I think I will keep the tools in the trailer.  If I need a toolbox, I can incorporate a smaller one on-board somewhere else.

Plus it will help to shorten the overall length of Kal.  Easier for shipping and storing.

_______________________________________________
Patriot [2019 Build Off]
Kal-El [2018 3rd Place]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Li'l Red 2.0

KAL the Extended Journey. - Page 3 Admins10
Back to top Go down
http://mightyraze.com
MightyRaze
Administrator
Administrator
MightyRaze

Age : 44
Join date : 2016-09-06
Posts : 5895
Forum Rep : 413
Location : Shawnee, OK

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeThu Jul 04, 2019 1:01 am

Did some work on Kal tonight while I grilled some steaks.

Got it jacked up to install the new bearings.

KAL the Extended Journey. - Page 3 Img_2053

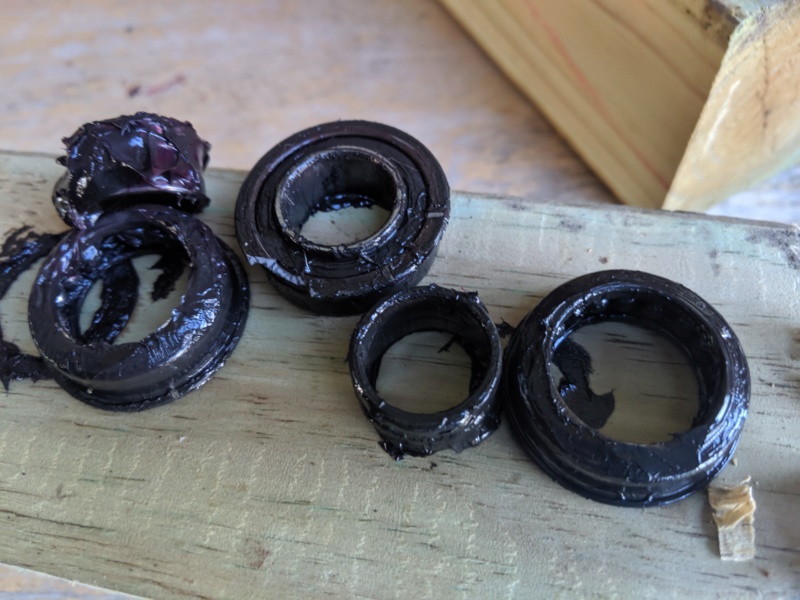

Knocked out the old bearings.  On both sides the inner race fell out as did some of the ball bearings.  These were light weight bearings and I was not thinking when I installed them.  I think they were designed for two wheel dollies.  I have the same ones on Li'l Red.  I'll need to replace them some day too.

KAL the Extended Journey. - Page 3 Img_2054

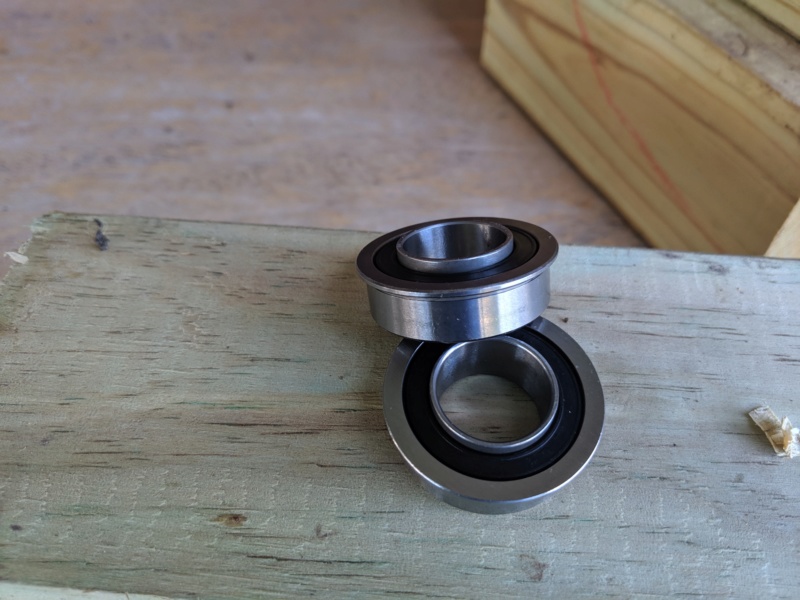

Here are the new bearings.  They are much sturdier.  I went ahead and cleaned out the barrels of the hubs because I plan on keeping these sealed.

KAL the Extended Journey. - Page 3 Img_2055

Got them knocked in the hubs.  One new bearing on each side.

KAL the Extended Journey. - Page 3 Img_2057

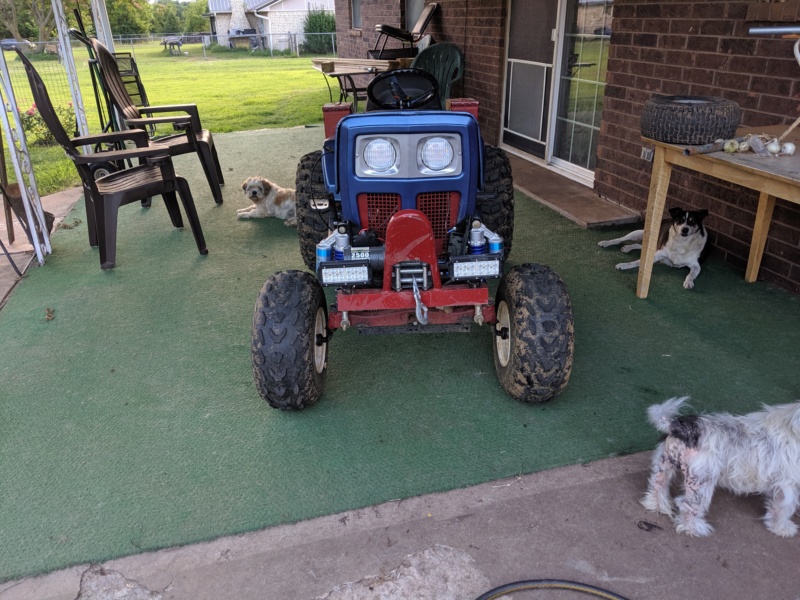

Now Kal stands true again!

KAL the Extended Journey. - Page 3 Img_2058


I went ahead and removed the rear rack.  I was not 100% happy with it at Haspin.

KAL the Extended Journey. - Page 3 Img_2056

I'll probably get razzed for this but it is the season to do a little dirt work, I have the Sears, but I also have a few implements that are sleeve hitch style.  Guess who the sleeve hitch belonged too?

Yep, Kal.

KAL the Extended Journey. - Page 3 Img_2059

The hitch will probably stay on for a little while.

_______________________________________________
Patriot [2019 Build Off]
Kal-El [2018 3rd Place]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Li'l Red 2.0

KAL the Extended Journey. - Page 3 Admins10
Back to top Go down
http://mightyraze.com
CraftsmanQuad19
Seasoned Veteran
Seasoned Veteran
CraftsmanQuad19

Age : 19
Join date : 2016-04-12
Posts : 2095
Forum Rep : 106
Location : Indiana

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeThu Jul 04, 2019 1:13 am

Good to see kal getting put to work. I’ve thought about doing a rack, but any way I think of doing it just won’t look right. Not to mention the exit angle like you said. What else about it didn’t you like? I thought the ammo cans were pretty handy, you seemed to use the chain several times while you were there
Back to top Go down
RichieRichOverdrive
Seasoned Veteran
Seasoned Veteran
RichieRichOverdrive

Age : 17
Join date : 2016-10-29
Posts : 2538
Forum Rep : 86
Location : Lewisburg, KY

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeThu Jul 04, 2019 4:33 am

Wish i had a sleeve hitch. Those bearings look good, i could use some for...well, almost everything around here.

CQ you might be surprised when you put a rack on. I didn't think I'd like the rack on mutt, as the one it had way back when was a pain. I grew fond of it for putting a chainsaw and gas/oil on, as she's my firewood rig. Plus it's nice having a handhold so you don't accidentally shove your fingers between the fender and tire. Although i guess most people don't run the tight tolerances i do [smiley]https://7img.net/users/2812/37/66/46/smiles/1098998679.gif[/smiley]
Back to top Go down
AllisKidD21
Moderator
Moderator
AllisKidD21

Age : 20
Join date : 2016-07-10
Posts : 4708
Forum Rep : 213
Location : Ontario Canada

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeThu Jul 04, 2019 7:37 am

Nice job Mighty! Should be good to go with the new front wheel bearings.

Also I agree that Kal looks much better without the rack sticking out behind the wheels. The clevis hitch is cool! What kind of implements do you have for it?

_______________________________________________
"This'll either wake you up or put you to sleep forever!"- Red Green         "Whatever you do you should do right, even if it's something wrong." - Hank Hill
       - MTD Off-Road Build
       - Toro Rat Rod Tractor Build
       - Ford LT 110 Off-Road Build
       - Craftsman GT 6000 Off-Road Build
       - John Deere 110 Basic Off-Road Build
       - Allis B-110, 710 & 716 - Wheel Horse 655 - Case 444 - Bolens Versamatic - Cub Cadet 106  - Jacobsen YT 14 -
Back to top Go down
Murraymountain
Master
Master
Murraymountain

Join date : 2019-02-04
Posts : 932
Forum Rep : 40
Location : North Carolina

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeThu Jul 04, 2019 10:03 am

To be honest, I think Kal looked a bit better with the rack, but if it's in the way, it's in the way.

I'm a firm believer in working your tractor. I do it all the time! I sure wish I could get attachments like those for MM20. But I guess you can't really get things like that for LT's lol!
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 44
Join date : 2016-09-06
Posts : 5895
Forum Rep : 413
Location : Shawnee, OK

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeThu Jul 04, 2019 1:23 pm

I have 2 plows 12 inch each and and a 2 row disk for the sleeve. The disk is not at the house. That is all I know.  The Sears has 2 plows a 10 and a 12 Inch. Single row disk. Rear blade, cultivator, potato plow, front dozer/snow plow and belly mower.

KAL the Extended Journey. - Page 3 Img_2060

_______________________________________________
Patriot [2019 Build Off]
Kal-El [2018 3rd Place]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Li'l Red 2.0

KAL the Extended Journey. - Page 3 Admins10
Back to top Go down
http://mightyraze.com
MightyRaze
Administrator
Administrator
MightyRaze

Age : 44
Join date : 2016-09-06
Posts : 5895
Forum Rep : 413
Location : Shawnee, OK

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeThu Jul 04, 2019 2:00 pm

@CraftsmanQuad19 wrote:
Good to see kal getting put to work. I’ve thought about doing a rack, but any way I think of doing it just won’t look right. Not to mention the exit angle like you said. What else about it didn’t you like? I thought the ammo cans were pretty handy, you seemed to use the chain several times while you were there

I still have it. I can always bolt it back up when needed.

_______________________________________________
Patriot [2019 Build Off]
Kal-El [2018 3rd Place]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Li'l Red 2.0

KAL the Extended Journey. - Page 3 Admins10
Back to top Go down
http://mightyraze.com
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2469
Forum Rep : 83
Location : New Jersey USA

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeFri Jul 05, 2019 2:10 am

Are those 4 x 4 hubs from BMI karts? If so, I have the same ones on the front of my simplicity and I'd like to upgrade to sealed bearings also. Any chance you have a number on your new bearings? Guessing you've got 3/4" axles like most of them. I had my wheels submerged in water a couple times and I never really greased them much. You can't get the wheel on the hub with where they put the grease fitting on mine so I just left it out. Think I squirted some oil in a few times but that was it. I imagine they are not in great shape and wanted to replace them before the top tractor challenge in august.
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 44
Join date : 2016-09-06
Posts : 5895
Forum Rep : 413
Location : Shawnee, OK

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeFri Jul 05, 2019 9:41 am

These are what I got this time.

Hubs

_______________________________________________
Patriot [2019 Build Off]
Kal-El [2018 3rd Place]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Li'l Red 2.0

KAL the Extended Journey. - Page 3 Admins10
Back to top Go down
http://mightyraze.com
mr.modified
Seasoned Veteran
Seasoned Veteran
mr.modified

Age : 29
Join date : 2013-11-02
Posts : 2469
Forum Rep : 83
Location : New Jersey USA

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeFri Jul 05, 2019 3:06 pm

They look fairly decent. Do you know off hand what the specs are? Mine need to be 1-3/8" Outside by 3/4" inside (of course). They don't show specs on the ebay listing.
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 44
Join date : 2016-09-06
Posts : 5895
Forum Rep : 413
Location : Shawnee, OK

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeFri Jul 05, 2019 3:26 pm

3/4 I.D X 1 3/8 O.D.

_______________________________________________
Patriot [2019 Build Off]
Kal-El [2018 3rd Place]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Li'l Red 2.0

KAL the Extended Journey. - Page 3 Admins10
Back to top Go down
http://mightyraze.com
MightyRaze
Administrator
Administrator
MightyRaze

Age : 44
Join date : 2016-09-06
Posts : 5895
Forum Rep : 413
Location : Shawnee, OK

KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitimeTue Aug 06, 2019 3:56 pm

Nothing much with Kal since I put on the sleeve hitch.  Sometime I will take that off and put it on Thor I think.  Put the Back rack back on.  CQ was right.  It was pretty handy at Haspin, not just for the ammo box storage, but made a good seat when just chillin.

The old tractor has come a long ways from this...
KAL the Extended Journey. - Page 3 Img_2162

To this...
KAL the Extended Journey. - Page 3 Img_2036

_______________________________________________
Patriot [2019 Build Off]
Kal-El [2018 3rd Place]
Sasquatch II [2017 Finalist]
Li'l Red Murray
Li'l Red 2.0

KAL the Extended Journey. - Page 3 Admins10
Back to top Go down
http://mightyraze.com
Sponsored content




KAL the Extended Journey. - Page 3 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 3 Icon_minitime

Back to top Go down

KAL the Extended Journey.
Back to top
Page 3 of 4Go to page : Previous  1, 2, 3, 4  Next
 Similar topics
-
» How much has everyone had replaced by extended warranty(RZR)

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
