CraftsmanQuad19
Grand Master
Grand Master


Join date : 2016-04-12
Posts : 2389

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeTue Jul 21, 2020 7:05 pm

Could you weld the sleeve to the crank and carefully grind down the weld to smooth everything out?
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 45
Join date : 2016-09-06
Posts : 6676
Forum Rep : 495
Location : Shawnee, OK

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeTue Jul 21, 2020 8:32 pm

The sleeve is a no go. It is welded in and is pretty much destroyed now. So since this is not a required thing. I am contemplating pulling the crank from another engine.

Maybe a full engine overhaul while at it.  Just trying to weigh options.

_______________________________________________
Li'l RED my original modified tractor!

Forum Admin -- Chat Admin-- Facebook Page Admin
ATLTF Facebook Page --How To Upload Pictures

Have a question? Ask me! Type in "@MightyRaze" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 45
Join date : 2016-09-06
Posts : 6676
Forum Rep : 495
Location : Shawnee, OK

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeTue Jul 21, 2020 9:32 pm

Decided not to mess with this crank. I'm going to just replace on it.

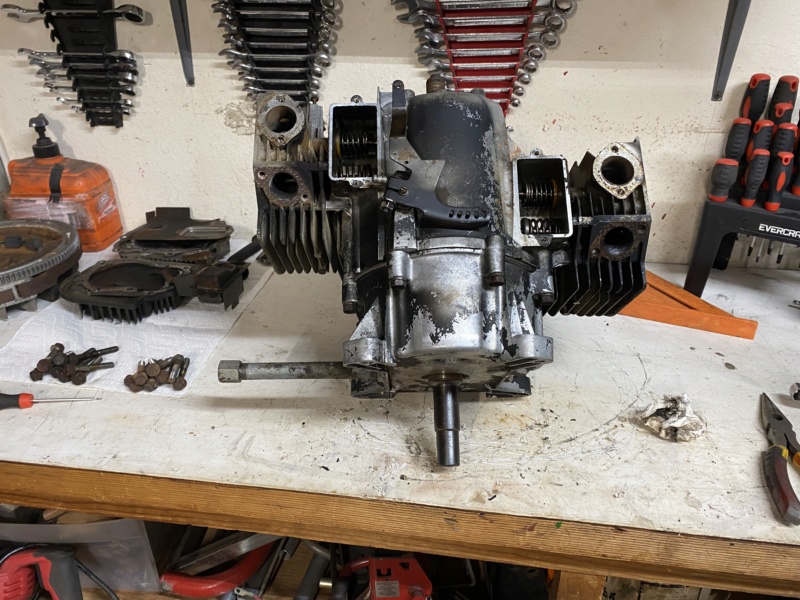

Tear down has begun.

KAL the Extended Journey. - Page 7 22f4cf10

_______________________________________________
Li'l RED my original modified tractor!

Forum Admin -- Chat Admin-- Facebook Page Admin
ATLTF Facebook Page --How To Upload Pictures

Have a question? Ask me! Type in "@MightyRaze" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 45
Join date : 2016-09-06
Posts : 6676
Forum Rep : 495
Location : Shawnee, OK

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeWed Jul 22, 2020 12:37 am

Valves seem right I-.005 E-.009. Both sides.
Absolutely no piston wobble. Cylinder walls are unscored. Remove the sump tomorrow. As well as inspection port. I don’t think I will remove the Pistons as I currently do not have a tool to reinsert the piston. If I get one or borrow I’ll pull them out.  Probably should for inspection. Not to worried with how they fit now.

_______________________________________________
Li'l RED my original modified tractor!

Forum Admin -- Chat Admin-- Facebook Page Admin
ATLTF Facebook Page --How To Upload Pictures

Have a question? Ask me! Type in "@MightyRaze" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
Murraymountain
Expert
Expert
Murraymountain

Join date : 2019-02-04
Posts : 1503
Forum Rep : 56
Location : North Carolina

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeWed Jul 22, 2020 1:45 pm

@MightyRaze wrote:
I don’t think I will remove the Pistons as I currently do not have a tool to reinsert the piston.

Do you not know the old hose clamp trick?
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 45
Join date : 2016-09-06
Posts : 6676
Forum Rep : 495
Location : Shawnee, OK

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeWed Jul 22, 2020 2:21 pm

Yeah, but that requires a hose clamp too.

_______________________________________________
Li'l RED my original modified tractor!

Forum Admin -- Chat Admin-- Facebook Page Admin
ATLTF Facebook Page --How To Upload Pictures

Have a question? Ask me! Type in "@MightyRaze" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
Murraymountain
Expert
Expert
Murraymountain

Join date : 2019-02-04
Posts : 1503
Forum Rep : 56
Location : North Carolina

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeWed Jul 22, 2020 2:40 pm

Oh, I thought you meant you didn't have the actual tool. LOL. Well then....
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 45
Join date : 2016-09-06
Posts : 6676
Forum Rep : 495
Location : Shawnee, OK

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeWed Jul 22, 2020 3:13 pm

Don’t have either. LOL

_______________________________________________
Li'l RED my original modified tractor!

Forum Admin -- Chat Admin-- Facebook Page Admin
ATLTF Facebook Page --How To Upload Pictures

Have a question? Ask me! Type in "@MightyRaze" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
BlakeGroce
Apprentice
Apprentice
BlakeGroce

Age : 17
Join date : 2019-06-02
Posts : 213
Forum Rep : 21
Location : Richmond Ky

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeThu Jul 23, 2020 7:15 pm

Well if it was me I'd just cut the top pulley off and use the bottom as a sleeve but I'm pretty sure I'm not seeing something because if it was that easy you'd probably have it done by now.
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 45
Join date : 2016-09-06
Posts : 6676
Forum Rep : 495
Location : Shawnee, OK

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeThu Jul 23, 2020 10:54 pm

2 things. The stack pulley is not the same on this one. It is just a pipe with a smaller pipe welded in on the small end. Also the pulley appears to be copper plated?!?!

Second, I destroyed it getting it off. lol

_______________________________________________
Li'l RED my original modified tractor!

Forum Admin -- Chat Admin-- Facebook Page Admin
ATLTF Facebook Page --How To Upload Pictures

Have a question? Ask me! Type in "@MightyRaze" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
RichieRichOverdrive
Seasoned Veteran
Seasoned Veteran
RichieRichOverdrive

Age : 17
Join date : 2016-10-29
Posts : 2868
Forum Rep : 116
Location : Lewisburg, KY

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeFri Jul 24, 2020 6:14 pm

Shouldn't be hard finding a crank. You can really find oppys on every streetcorner and scrapyard in america.
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 45
Join date : 2016-09-06
Posts : 6676
Forum Rep : 495
Location : Shawnee, OK

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeSat Jul 25, 2020 12:20 am

Oh. I have one coming in Monday!  Not surei mentioned that.

_______________________________________________
Li'l RED my original modified tractor!

Forum Admin -- Chat Admin-- Facebook Page Admin
ATLTF Facebook Page --How To Upload Pictures

Have a question? Ask me! Type in "@MightyRaze" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 45
Join date : 2016-09-06
Posts : 6676
Forum Rep : 495
Location : Shawnee, OK

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeMon Jul 27, 2020 12:28 am

Well, the crank came in Saturday while my family and I were camping out at the lake, doing a little social distancing!

KAL the Extended Journey. - Page 7 Img_0214
KAL the Extended Journey. - Page 7 Img_0215
KAL the Extended Journey. - Page 7 Img_e014

But I digress...

I don't know what I was thinking when I said I was going to change the crank without removing the pistons.  Can't do it.  LOL, not a problem though.  I borrowed my dad's tool to put them back in, easy peasy.  Didn't take a pic with the block empty.  Hands were pretty dirty. LOL been kinda fun doing this.  Haven't taken an engine down to an empty block and build it back up before.  Not hard.  Well, valve springs are a little hard when you do not have that tool, but I managed.

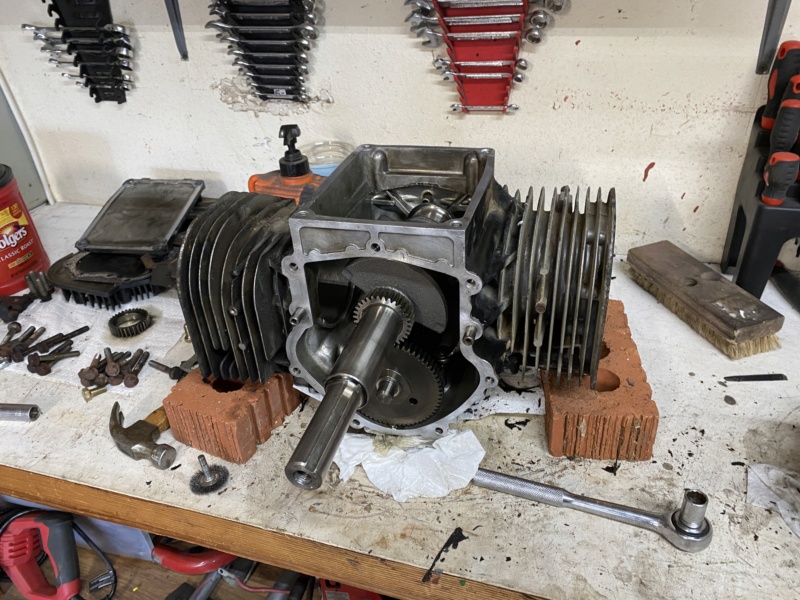

New crank installed as well as the camshaft...

KAL the Extended Journey. - Page 7 Img_0216
Timing lined up...

KAL the Extended Journey. - Page 7 Img_0217

Pistons, installed.  BTW rings looked BRAND NEW!

KAL the Extended Journey. - Page 7 Img_0218

KAL the Extended Journey. - Page 7 Img_0219

Sump installed as well as the access port.  Everything has been torqued to Briggs specifications.

KAL the Extended Journey. - Page 7 Img_0220

Didn't get a pic, but valve covers installed as well as a new Top and Bottom oil seal.

That is where I stopped for the night.  Tomorrow, if I have time, I will install the heads as well as the intake.  Then sometime I will clean the engine again and repaint it.  Little trouble finding some black engine paint for some reason right now.

_______________________________________________
Li'l RED my original modified tractor!

Forum Admin -- Chat Admin-- Facebook Page Admin
ATLTF Facebook Page --How To Upload Pictures

Have a question? Ask me! Type in "@MightyRaze" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
BlakeGroce
Apprentice
Apprentice
BlakeGroce

Age : 17
Join date : 2019-06-02
Posts : 213
Forum Rep : 21
Location : Richmond Ky

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeMon Jul 27, 2020 4:36 pm

Nice! Knew there was something to it. Black will look good!
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 45
Join date : 2016-09-06
Posts : 6676
Forum Rep : 495
Location : Shawnee, OK

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeMon Jul 27, 2020 11:54 pm

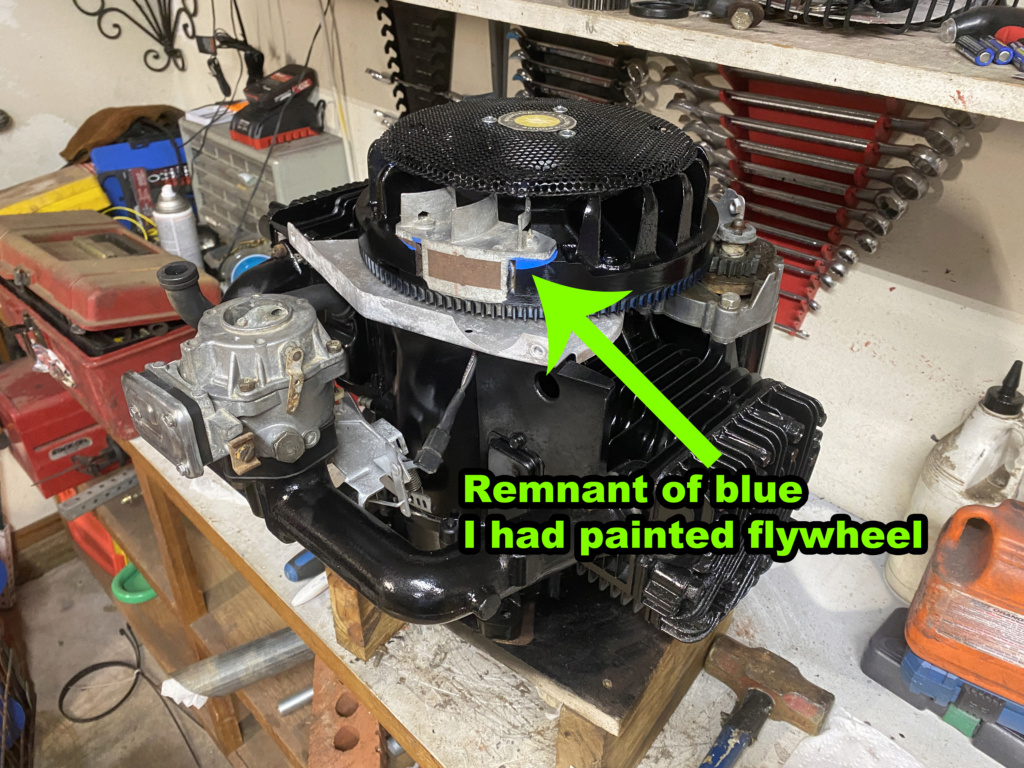

Did some more work tonight on the 18hp.  It's really starting to come together.

KAL the Extended Journey. - Page 7 Img_0222
KAL the Extended Journey. - Page 7 Img_0221
KAL the Extended Journey. - Page 7 Img_0223


KAL the Extended Journey. - Page 7 Img_0224

Next I will work on the starter.  I'll pull it apart and clean and grease it up.  See if I can get by without buying a new one.  I will also work on the carb.  It's pretty rough, but I think I can get it cleaned up.  We will see.  The fan shroud has been MIA.  I found it today in the back of the shed.  I had painted it Yellow at one time thinking I would be putting it on my suburban, but found out the shroud is taller for a horizontal vs a vertical.  It will need a new black paint job.

_______________________________________________
Li'l RED my original modified tractor!

Forum Admin -- Chat Admin-- Facebook Page Admin
ATLTF Facebook Page --How To Upload Pictures

Have a question? Ask me! Type in "@MightyRaze" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
Double W Cross Ranch
Seasoned Veteran
Seasoned Veteran
Double W Cross Ranch

Age : 16
Join date : 2017-06-09
Posts : 2543
Forum Rep : 77
Location : Literally Nowhere, Texas

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeTue Jul 28, 2020 11:29 am

@RichieRichOverdrive wrote:
Shouldn't be hard finding a crank. You can really find oppys on every streetcorner and scrapyard in america.
Me who has been trying to find one for the last 3 years and only just got one.


That engine looks really clean Mighty! Looks brand new. I bet it'll run great for years to come.
Back to top Go down
https://themagazineishalff.wixsite.com/website
MightyRaze
Administrator
Administrator
MightyRaze

Age : 45
Join date : 2016-09-06
Posts : 6676
Forum Rep : 495
Location : Shawnee, OK

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeTue Jul 28, 2020 12:49 pm

I'm going for a bit of a restore on it. Replaced all the gaskets so far, repainted the block.  It ended up being a full tear down.

I have the carb that I had soaking in mineral spirits for a while cleaned up and installed.  Had to make a new throttle link.  Mine turned up missing.  Also got the starter cleaned, painted and installed.  I still lack a coil.  I have a small dilemma.  This engine has the older all cast flywheel and not the 2 piece with the plastic fan.  May loose my pull start until I can come up with a new plan.

_______________________________________________
Li'l RED my original modified tractor!

Forum Admin -- Chat Admin-- Facebook Page Admin
ATLTF Facebook Page --How To Upload Pictures

Have a question? Ask me! Type in "@MightyRaze" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 45
Join date : 2016-09-06
Posts : 6676
Forum Rep : 495
Location : Shawnee, OK

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeTue Jul 28, 2020 1:33 pm

Scratch that, not sure what I was thinking.  They all pretty much have the same screw pattern for the briggs flywheel puller.  Non-issue with pull start.  LOL

_______________________________________________
Li'l RED my original modified tractor!

Forum Admin -- Chat Admin-- Facebook Page Admin
ATLTF Facebook Page --How To Upload Pictures

Have a question? Ask me! Type in "@MightyRaze" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 45
Join date : 2016-09-06
Posts : 6676
Forum Rep : 495
Location : Shawnee, OK

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeTue Jul 28, 2020 2:58 pm

Few more updates from this morning while working from home.

I was going to go with a blue flywheel, but didn't want to copycat Jeremiah's wards.  So I decided to go more traditional black.

KAL the Extended Journey. - Page 7 Img_0227


Here is the link I made for the throttle.

KAL the Extended Journey. - Page 7 Img_0225

It's coming together!  That toolbox has most of my smaller Briggs parts, mostly carb stuff.

KAL the Extended Journey. - Page 7 Img_0226

Plan on cleaning the side tins later today and touch them up for install.  I ended up having to order a coil.  Went ahead and got a package of L-Head spark plugs too.

I halfway dread cleaning the side tins, they were full of oil, mouse debris and other unidentified substances.

_______________________________________________
Li'l RED my original modified tractor!

Forum Admin -- Chat Admin-- Facebook Page Admin
ATLTF Facebook Page --How To Upload Pictures

Have a question? Ask me! Type in "@MightyRaze" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
MightyRaze
Administrator
Administrator
MightyRaze

Age : 45
Join date : 2016-09-06
Posts : 6676
Forum Rep : 495
Location : Shawnee, OK

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeTue Jul 28, 2020 9:38 pm

Getting closer. I am hoping to fire it up this weekend. We will see!  I will need an air filter.

KAL the Extended Journey. - Page 7 0a9c8610
KAL the Extended Journey. - Page 7 34cd6410
KAL the Extended Journey. - Page 7 6eebdd10

_______________________________________________
Li'l RED my original modified tractor!

Forum Admin -- Chat Admin-- Facebook Page Admin
ATLTF Facebook Page --How To Upload Pictures

Have a question? Ask me! Type in "@MightyRaze" in your post!

Your ATLTF Staff:
Administrators: @Doug, @MightyRaze, @"Doc Sprocket", @Stretch44875
Moderators: @TheRainbowBoxer, @AllisKidD21
Back to top Go down
CraftsmanQuad19
Grand Master
Grand Master
CraftsmanQuad19

Age : 20
Join date : 2016-04-12
Posts : 2389
Forum Rep : 135
Location : Indiana

KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitimeTue Jul 28, 2020 10:23 pm

Looks fresh off the assembly line. Good job mighty!
Back to top Go down
Sponsored content




KAL the Extended Journey. - Page 7 Empty
PostSubject: Re: KAL the Extended Journey.   KAL the Extended Journey. - Page 7 Icon_minitime

Back to top Go down

KAL the Extended Journey.
Back to top
Page 7 of 7Go to page : Previous  1, 2, 3, 4, 5, 6, 7

Permissions in this forum:You cannot reply to topics in this forum
All-Terrain Lawn Tractor Forum :: Tractor Project Builds :: Off Road & Rally Tractors-
Jump to:
